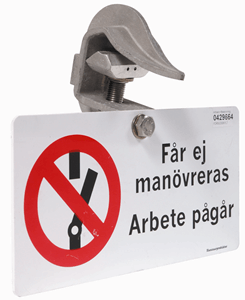

Sign Assembly JK 30-F13 – For Temporary Marking at Section Insulators
The JK 30-F13 sign assembly with prohibition sign F13 is intended for temporary use on section insulators equipped with a disconnector blade. It provides clear and safe marking during work on overhead contact line systems.
- Designed for section insulators with disconnector blade
- Operated using an operating pole and clamp tool JGS 18
- Double-sided print for high visibility
- Clamp made of AlSi alloy for low weight and high strength
- Stainless steel components for long service life
- Sign made of white UV-resistant PVC plastic
- Other sign variants available upon request

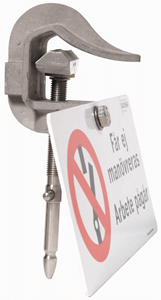

The clamp is operated using an operating pole together with clamp tool JGS 18, allowing safe handling from ground level. The construction is robust and designed for demanding railway infrastructure environments.
Technical Data
- Type: JK 30-F13
- Clamping range: 5–30 mm
- Clamping width: 60 mm
- Dimensions including sign: 270 × 300 mm (height × width)
- Weight: 1.0 kg per unit
