Sleeper Layer RUS – Flexible and Efficient Sleeper Installation for All Types of Projects
The RUS Sleeper Layer is designed for fast, safe, and flexible handling of both wooden and concrete sleepers. With the option of centre-gripping or end-gripping arms, the machine can easily be adapted to different working methods and project requirements.
- Flexible configuration – Choose between centre-gripping or end-gripping arms depending on the application.
- Scalable capacity – Available with 3–6 arms for optimal productivity.
- Efficient operation – Prepared for two double-acting hydraulic circuits or one hydraulic circuit + electric valve.
- Robust design – Built for demanding railway environments and high operational reliability.
- Wide application range – Handles both wooden and concrete sleepers in various working conditions.
Function and Application
The RUS Sleeper Layer is available in two main versions:

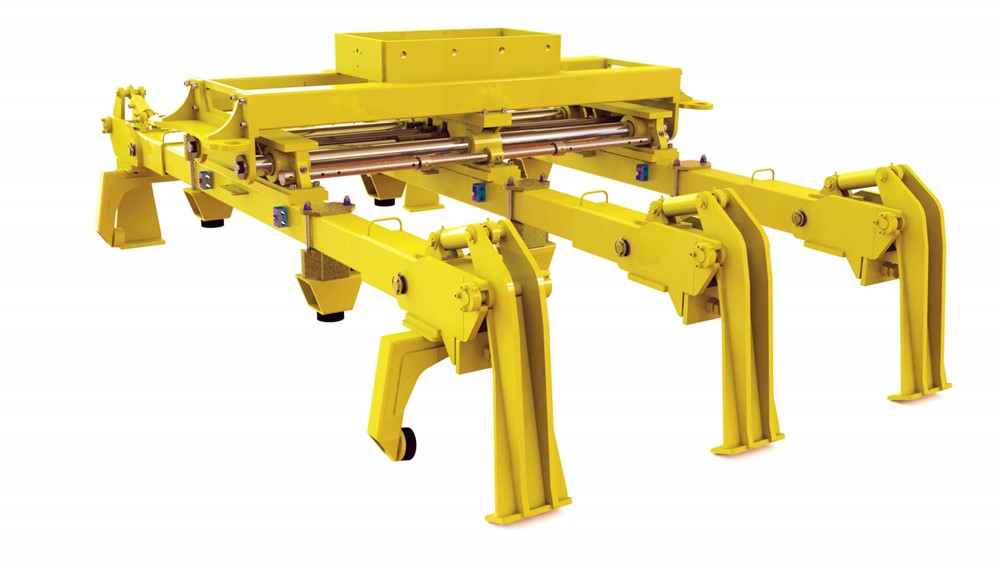

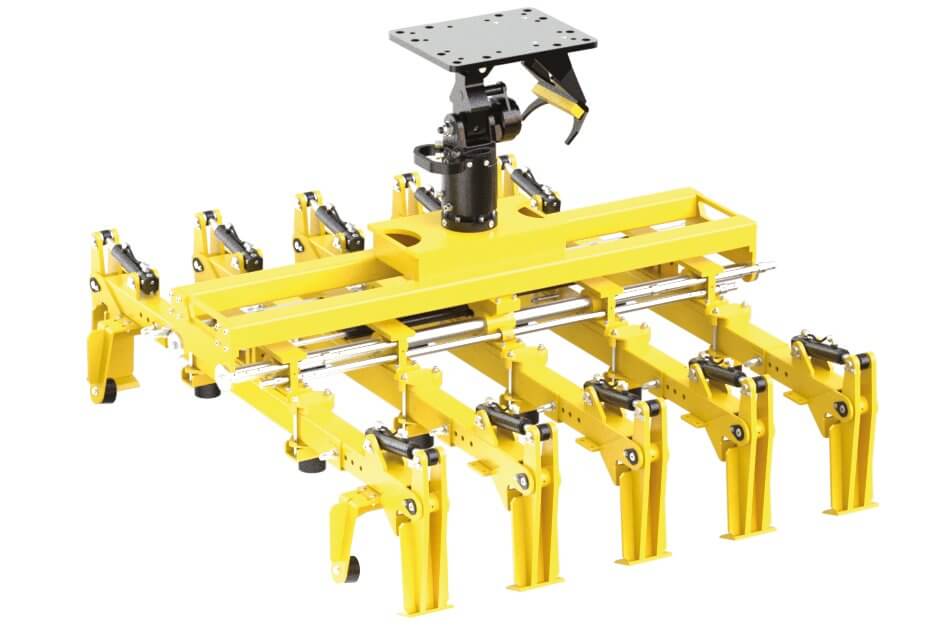

Centre-Gripping Model
The centre-gripping RUS model is used for traditional sleeper installation or for placing sleepers under existing rails (3-arm version). It can also be ordered with off-centre pick-up to allow collection of sleepers directly from forks.
Available with 3, 4, 5, or 6 arms.

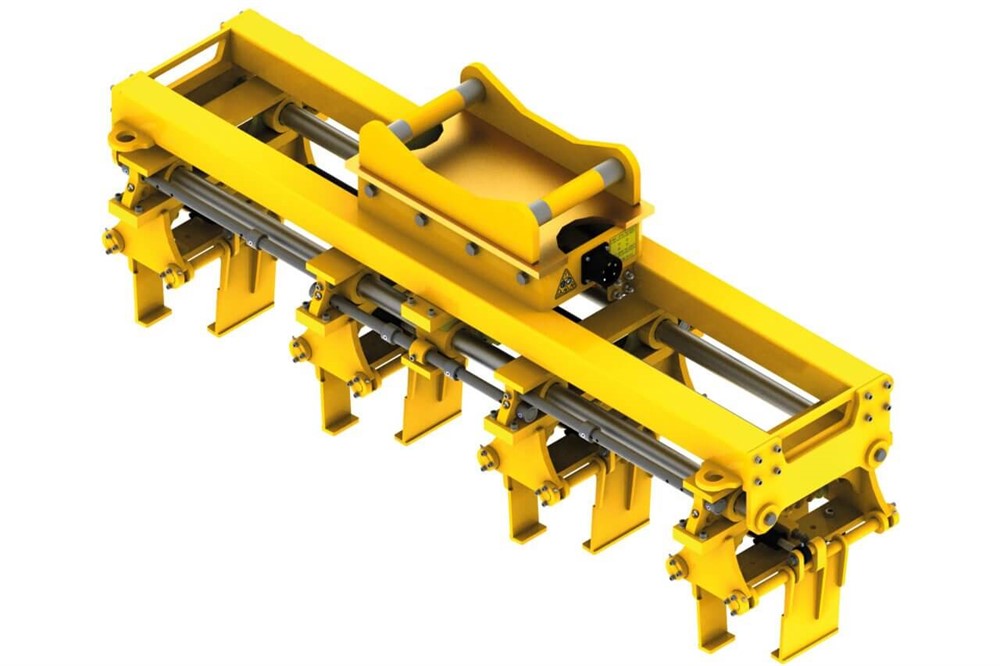

End-Gripping Model

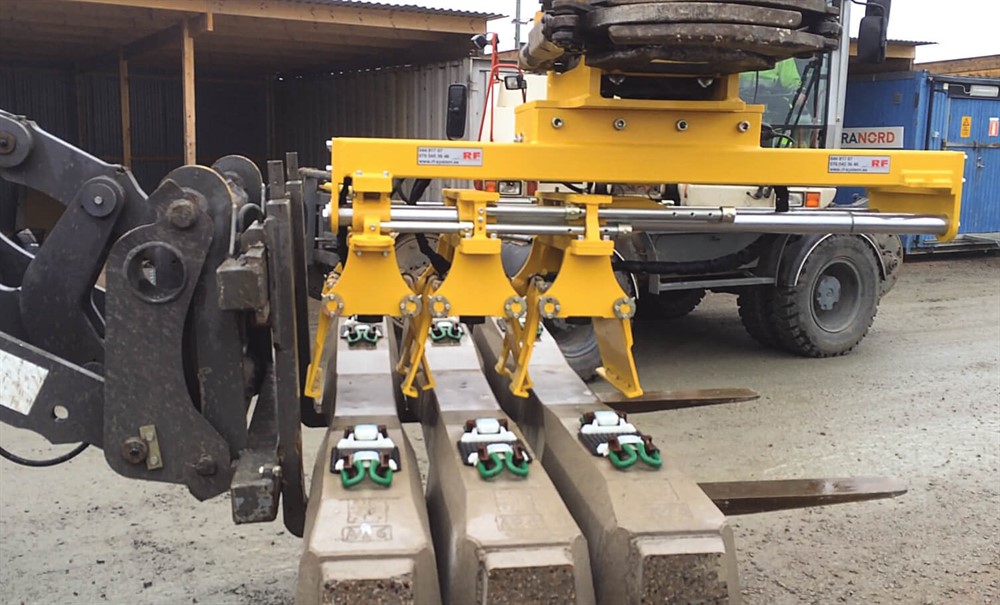

The end-gripping RUS can handle all types of wooden or concrete sleepers, even when they are stacked tightly without spacing.
Available with 3, 4, 5, or 6 arms.
Technical Specifications
Weight: 530–1900 kg
Machine Requirements
Recommended carrier weight:
- 12–24 tonnes (3–4 sleepers)
- 18–24 tonnes (5–6 sleepers)
2 double-acting hydraulic circuits
or
1 hydraulic circuit + 1 electric valve
- Max pressure: 200 bar
- Oil flow: 30–60 l/min
Accessories
- AGS machine bracket
- Height extension for centre-gripping arms (for installation under rail)
- Rotator for crane mounting
- Laser distance measuring system with light kit for accurate sleeper placement
- Fully automatic quick coupler systems from all manufacturers
