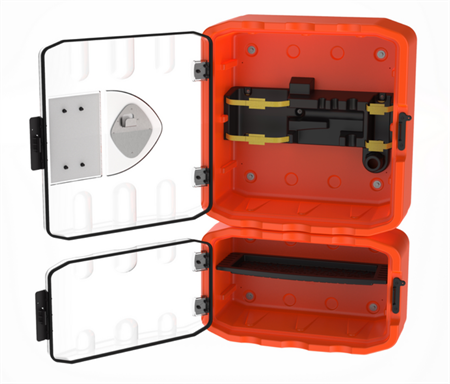

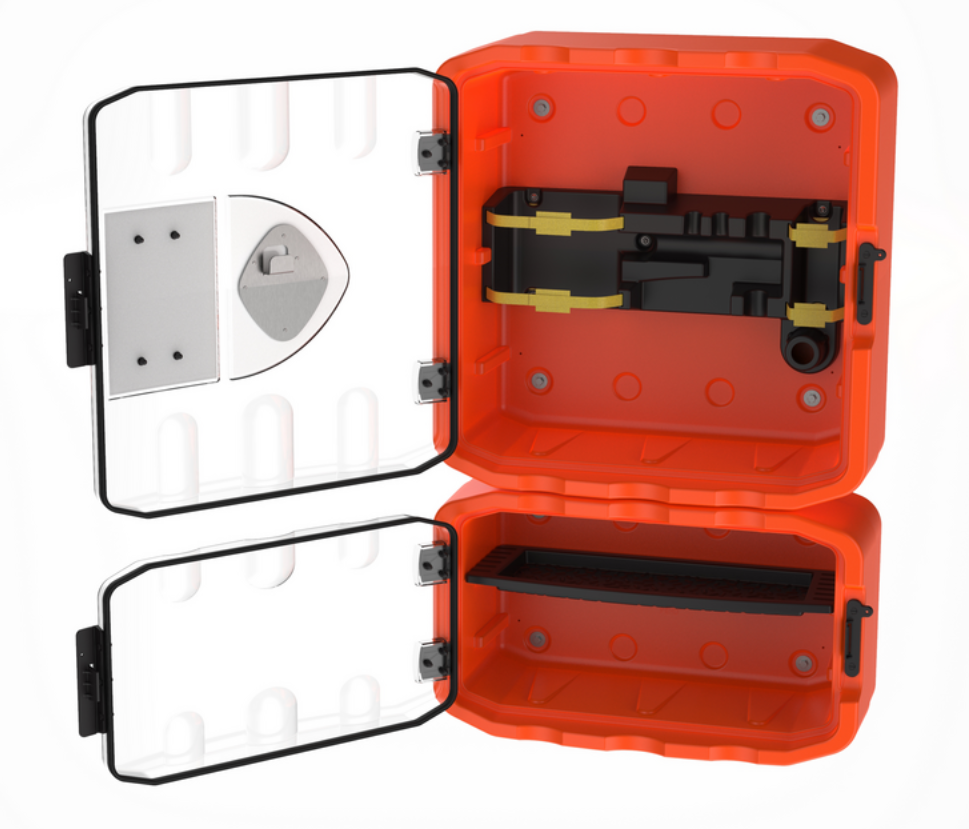

This wall-mounted rescue station provides quick access to essential equipment in the event of accidents in or near electrical installations up to 36 kV. The system is adapted for both indoor and outdoor use and is also available in versions for low voltage and 25 kV.
-
Quick response assistance for electrical accidents and incidents.
-
Clear overview of the equipment directly from the outside thanks to a transparent and UV-resistant door.
-
Effective protection against dust, salt spray, and water splashes (IP54) for safe storage in outdoor environments.
-
Lockable housing that ensures materials are not removed for other purposes and are available when needed.
-
High modularity with the possibility to customize storage through optional modules and removable shelves.
This wall-mounted rescue station is specifically designed to enable immediate intervention during electrical accidents associated with high-voltage installations up to 36 kV. The system is also available in versions adapted for low voltage and 25 kV, making it a versatile safety solution for various types of technical environments.
The cabinet is constructed to withstand both indoor and outdoor use and possesses a robust protection rating of IP54. This ensures that life-saving equipment is effectively protected against dust, water splashes, and corrosive salt spray from marine environments.
The design prioritizes a quick overview through a transparent and UV-resistant door that allows the contents to be inspected without opening the cabinet. To guarantee that the material is in place when an emergency arises, the unit is also lockable, which prevents unauthorized borrowing of the equipment.
Flexibility is central, as the storage space can be tailored using removable shelves and extra add-on modules. This makes it possible to organize everything from small components to complete sets of medium-voltage fuses in a structured and easily accessible manner.
Technical specifications
-
Weatherproof enclosure: Made of robust plastic that resists weather, dust, and water splashes as well as salt-saturated marine air (IP54).
-
Transparent door: UV-resistant material with a lockable handle that can be sealed or secured with a padlock (max. Ø 4.8 mm shackle).
-
Optimized interior: Equipment mounting inserts are designed for efficient storage and rapid access in emergencies.
-
Mounting kit: Delivered complete with a kit for wall mounting.
-
1 pair of insulating safety boots for live working, 20 kV, size 45.
-
1 pair of insulating latex gloves, class 3, size 10.
-
1 protective bag for storage of insulating gloves.
-
1 bottle of talcum powder for glove maintenance.
-
1 non-contact voltage detector.
-
1 telescopic insulating pole.
-
1 rescue hook adapted for the insulating pole.
-
1 insulating stool approved for 36 kV.
-
1 roll of boundary tape.
-
1 set of 2 adhesive decals for the door: model identification and instructions for electrical accidents.
